Old School Model Works : Sunday Fighter (One-O Nine) kit

"Never fly straight or you’ll be a dead duck."

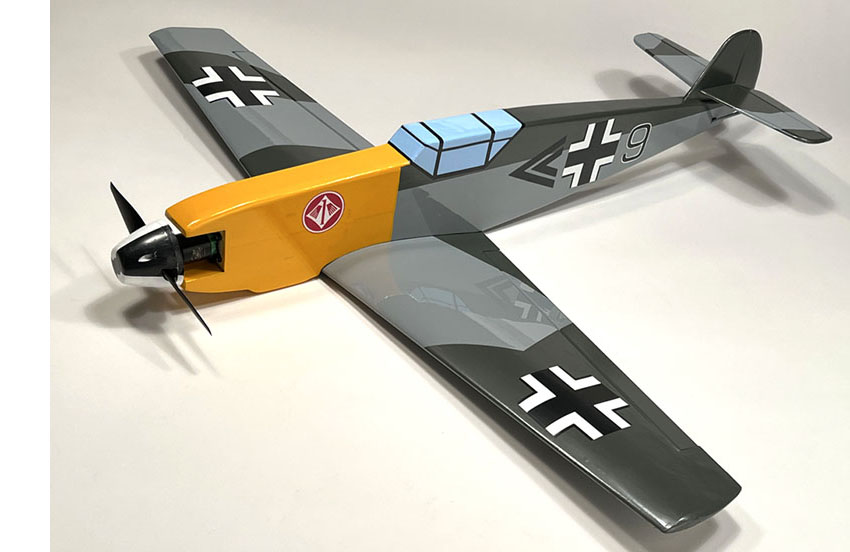

Fast, but not too fast. Manueverable, agile and responsive - but not tricky. A snap to build - and with a fully sheeted airframe, surprisingly rugged compared to most.

Don’t let the lack of landing gear scare you. Hand launching is easy because of the fuselage’s light weight and strengthened design. In the air, it really looks the part without any exposed gear to detract from it’s clean lines. Bringing the One-O-Nine in for a belly landing on grass is just as easy.

You should see them take evasive maneuvers in Dog Fighting. Evade with snap rolls into spins, Immelmann turns and a loop.

Our One-O-Nine kit is part of our Sunday Fighter lineup and just might be the most fun you’ve had in a long time.


Because of the interlocking design and high quality laser cutting of the parts, the Sunday Fighter is a quick build. Not only does it build quick, but it also builds straight and true as all of the parts are designed to align properly with a minimum of fuss and alignment tools.

The wing is removable for storage/transport and for giving access to the radio/servo area. From there you have easy access to install most any brand of radio and control linkages.

What's more, the fully assembled model can fit in the trunk of most cars.

Although mainly designed for electric power, you can also use a .25-sized glow engine as well. Glow engines are side mounted. Electric motors are mounted on the "extended" firewall to space the motor the proper distance forward.

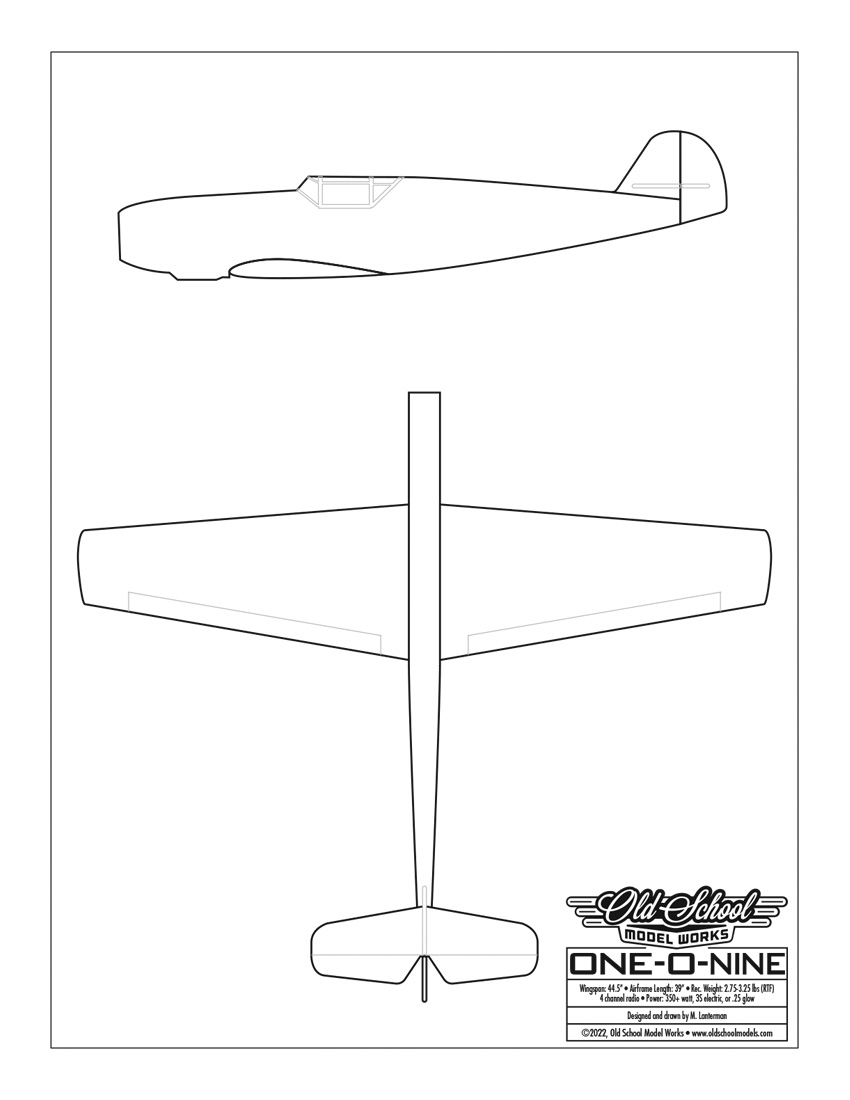

When assembled, you now have a blank canvas and can apply any number of color schemes, or make up your own.

In the air, the One-O Nine is a blast to fly. A simple hand-launch get's it airborne, then you can cruise quite easily and 1/2 power. Throttle up for loops, eights, snaps, spins, hammerhead turnaounds - or maybe a screaming low-level pass, right down the runway. When you're ready to land, simply throttle back and gently bring the One-O Nine in for a belly landing on the grass.

This is just one design in our growing Sunday Fighter series. See them all at this link.

Our One-O Nine was independently reviewed by Fitz Walker. Check out his video report below...

Specifications:

Wingspan: 44.5 inches

Wing Area: 330 sq inches

Length (airframe only): 39 inches

Weight: 2.75 - 3.25 pounds

Radio: 4 channel system
• 4 servos (Sub-Micro servos, similar to HS-5065MG)
• 1 additional servo for throttle, if using a glow engine

Power:
• Glow (.25 engine)
• Electric (350+ watt, 60 amp ESC, 3-4s LiPo)

Thinking of going electric? Click the icon to the left for suggested motor, ESC, battery and prop combinations, courtesy of Innov8tive Designs.



All Old School Model Works kits feature:

Precision laser-cut parts

Included in every Old School Model Works kit are all the wing ribs, fuselage formers, and other wood needed to build the aircraft.

Interlocking parts

We've engineered each kit to give you the best chance of success. Each laser-cut part interlocks with the next for an accurate and secure joint.

Rolled Plans

Each of our kits contains a set of rolled plans, never folded. They are full-size, highly detailed, and computer-drawn for accuracy.

WEB-LOCK Wing Construction

Our exclusive wing design and construction techniques give you everything you need to easily build a straight and true wing with a minimum amount of fuss.

Illustrated Instructions

A step by step manual with plenty of photo illustrations is included in each kit. We also provide links to online, clear, hi-rez photos for each step.

Click here to download a copy of the One-O Nine manual.
