Old School Model Works : Sky Ranger 40

An all around low-wing sport model based off a 1970’s classic.

The Sky Ranger 40 is as much fun to build as it is to fly.

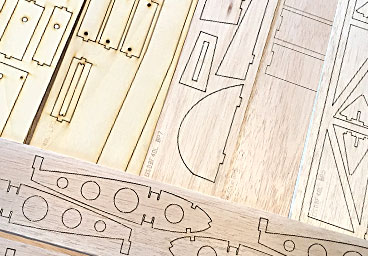

Using updated design techniques and laser-cut precision, we’ve designed this kit so most any modeler can successfully build it in a short amount of time.

This all-around sport model’s retro design looks great in the air and makes you look like an ace pilot. Loop it, roll it, spin it, snap it, and just have a great time flying it.

Power the Sky Ranger 40 with either an electric or glow powerplant.

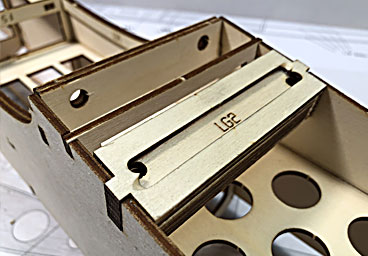

We’ve designed the fuselage with a built-in hatch so you have quick access to either your LiPo batteries or fuel tank. The wing is removable via two bolts from the underside of the model.

Our Sky Ranger 40 was reviewed by Terry Dunn in Model Aviation magazine. Check out his video report below...

Specifications:

Wingspan: 60 inches

Wing Area: 527 square inches

Length (airframe only): 42.75 inches

Weight: 3.5 - 4.5 pounds

Radio:
• 4 channel system
• 4 40-70 in./oz. servos (Standard servos - similar to HS-311)
• 1 additional servo for throttle, if using a glow engine

Power:
• Electric (minimum 800 watt motor, 80 amp ESC, 4-5S LiPo)
• Glow ( .40-.45 engine, 6 ounce tank, fuel tubing)

Thinking of going electric? Click the icon to the left for suggested motor, ESC, battery and prop combinations, courtesy of Innov8tive Designs.
